MS Angles

Heading section

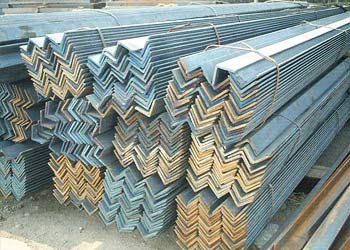

We are reputed manufacturer of MS angles comprising of different sizes and structures. Our MS angles are popular in the midst of various industries for their high degree of accuracy. We manufacture mild steel angles by the use of hundred per cent steel as a consequence we are a reputed steel angles manufacturer. Also with our timely supply of mild steel angles most of the customers turn to us and regularly place large demands that have helped us to emerge one of the highly acclaimed steel angles suppliers in India.
We offer durable and high strength M.S angles, which is available in desired specifications as offered to us by our clients. Our range is available at industry leading prices to our clients.
Our Equal angles are made of high grade steel conforming to International Standards. High levels of stock are held and for urgent requirements your goods can be ready within a very short lead time.
We offer to our clients a wide range of Mild Steel Angle / MS Angles that find applications in sugar mills, & distilleries, cement and ship building. These are known for pressure resistant, corrosion resistant and temperature resistant. Our range is offered in various technical specifications as per the application requirements of the clients.
We provide a large range of superior quality M S Angles in various sizes, ranging from 25x25x3 to 90x90x10. We are counted among the reliable Mild Steel Angles Manufacturers and suppliers based in India. Use of optimum quality mild steel ensures the high durability of our Galvanized Mild Steel Angles. Anti abrasive and non-corrosive nature of our Galvanized Mild Steel Angles assures no maintenance. High strength of our Galvanized Mild Steel Angles makes them perfect for various industrial purposes. We offer Galvanized Mild Steel Angles within the stipulated time frame at very reasonable prices.
We are one of the top manufacturers, exporters, suppliers and distributors of Mild Steel Angles, MS Angles, Steel Angles.
We manufacture and export mild steel angles, MS angles, mild steel structure mainly angles for various purposes. Standard specifications of these structure are given below. However, we can also manufacture them as per customer's requirements.
M S EQUAL ANGLES
THICKNESS SIZE MM MM X MM 3 4 5 6
20 X 20 0-9 1-1 - -
25 X 25 1-1 1-4 1-8 -
30 X 30 1-4 1-8 2-2 -
35 X 35 1-6 2-1 2-6 3-0
40 x 40 1-8 2-4 3-0 3-5
45 x 45 2-1 2-7 3-4 4-0
50 x 50 2-3 3-0 3-8 4-5
UNEQUAL ANGLES
THICKNESS SIZE MM MM X MM 3 4 5 6
30X 20 1-1 1-4 1-8 -
40X 25 1-5 1-9 2-4 2-8
45X 30 1-7 2-2 2-8 3-3
50X 30 1-8 2-4 3-0 3-5

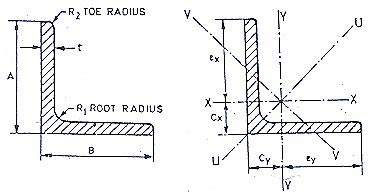

Destination Mass M Kg/m Sectional Area, a cm² Dimensions
A x B
mm x mm
T
mm
R1
mm
R2
mm
(1) (2) (3) (4) (5) (6) 7)
∠ 50 50x3 2.3 2.95 50x50 3.0 6.0
x 4 3.0 3.88   4.0
x 5 3.8 4.79   5.0
x 6 4.5 5.68   6.0
∠55 55x5 4.1 5.27 55x55 5.0 6.5
x 6 4.9 6.26   6.0
x 8 6.4 8.18   8.0
x 10 7.9 10.0   10.0
∠ 60 60x5 4.5 5.75 60x60 5.0 6.5
x 6 5.4 6.84   6.0
x 8 7.0 8.96   8.0
x 10 8.6 11.0   10.0
∠ 65 65x5 4.9 6.25 65x65 5.0 6.5
x 6 5.8 7.44   6.0
x 8 7.7 9.76   8.0
x 10 9.4 12.0   10.0
∠ 70 70x5 5.3 6.77 70x70 5.0 7.0
x 6 6.3 8.06   6.0
x 8 8.3 10.6   8.0
x 10 10.2 13.0   10.0
∠ 75 75x5 5.7 7.27 75x75 5.0 7.0
x 6 6.8 8.66   6.0
x 8 8.9 11.4   8.0
x 10 11.0 14.0   10.0
∠ 80 80x6 7.3 9.29 80x80 6.0 8.0
x 8 9.6 12.2   8.0
x 10 11.8 15.0   10.0
x 12 14.0 17.8   12.0
∠ 90 90x6 8.2 10.5 90x90 6.0 8.5
x 8 10.8 13.8   8.0
x 10 13.4 17.0   10.0
x 12 15.8 20.2   12.0
∠ 100 100x6 9.2 11.7 100x100 6.0 8.5
x 8 12.1 15.4   8.0
x 10 14.9 19.0   10.0
∠ 110 110x8 13.4 17.1 110x110 8.0 10.0 4.8
x 10 16.6 21.1   10.0
x 12 19.7 25.1   12.0
x 16 25.7 32.8   16.0
∠ 130 130x8 15.9 20.3 130x130 8.0 10.0 4.8
x 10 19.7 25.1   10.0
x 12 23.5 29.9   12.0
x 16 30.7 39.2   16.0
∠ 150 150x10 22.9 29.2 150x150 10.0 12.0 4.8
x 12 27.3 34.8   12.0
x 16 35.8 45.6   16.0
x 20 44.1 56.2   20.0
